在 Torch-TensorRT 中使用自定義核心與 TensorRT 引擎¶
我們將演示開發者如何在 Torch-TensorRT 中使用自定義核心整合到 TensorRT 引擎中。
如果 Torch-TensorRT 不知道如何在 TensorRT 中編譯某些操作，它支援回退到 PyTorch 實現。然而，這會帶來圖中斷的代價，並會降低模型的效能。解決運算子不支援的最簡單方法是新增分解（參見：為 Dynamo 前端編寫下層 Pass）——它將運算子定義為 Torch-TensorRT 支援的 PyTorch 運算子；或者新增轉換器（參見：為 Dynamo 前端編寫轉換器）——它將運算子定義為 TensorRT 運算子。
在某些情況下，這兩種方法都不太適用，可能是因為該運算子是標準 PyTorch 中不存在的自定義核心，或者 TensorRT 無法原生支援它。

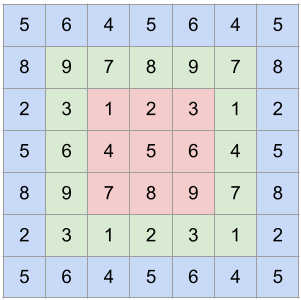

對於這些情況，可以使用 TensorRT 外掛來替換 TensorRT 引擎內部的運算子，從而避免圖中斷帶來的效能和資源開銷。為了演示，考慮迴圈填充操作。迴圈填充對於深度學習中的迴圈卷積等操作非常有用。下圖展示了原始影像（紅色）一次迴圈填充（綠色）和兩次迴圈填充（藍色）的情況。
在 PyTorch 中編寫自定義運算子¶
假設出於某種原因，我們想要使用迴圈填充的自定義實現。這裡我們使用 OpenAI Triton 編寫的核心來實現。
在 PyTorch 中使用自定義核心時，建議額外將其註冊為 PyTorch 中的正式運算子。這既能簡化其在 PyTorch 中的使用，也能更容易在 Torch-TensorRT 中處理該操作。這可以透過 C++ 庫或 Python 來完成。（更多詳細資訊參見：C++ 中的自定義運算子 和 Python 自定義運算子）
from typing import Any, Sequence
import numpy as np
import torch
import triton
import triton.language as tl
from torch.library import custom_op
# Defining the kernel to be run on the GPU
@triton.jit # type: ignore
def circ_pad_kernel(
X: torch.Tensor,
all_pads_0: tl.int32,
all_pads_2: tl.int32,
all_pads_4: tl.int32,
all_pads_6: tl.int32,
orig_dims_0: tl.int32,
orig_dims_1: tl.int32,
orig_dims_2: tl.int32,
orig_dims_3: tl.int32,
Y: torch.Tensor,
Y_shape_1: tl.int32,
Y_shape_2: tl.int32,
Y_shape_3: tl.int32,
X_len: tl.int32,
Y_len: tl.int32,
BLOCK_SIZE: tl.constexpr,
) -> None:
pid = tl.program_id(0)
i = pid * BLOCK_SIZE + tl.arange(0, BLOCK_SIZE)
mask_y = i < Y_len
i3 = i % Y_shape_3
i2 = (i // Y_shape_3) % Y_shape_2
i1 = (i // Y_shape_3 // Y_shape_2) % Y_shape_1
i0 = i // Y_shape_3 // Y_shape_2 // Y_shape_1
j0 = (i0 - all_pads_0 + orig_dims_0) % orig_dims_0
j1 = (i1 - all_pads_2 + orig_dims_1) % orig_dims_1
j2 = (i2 - all_pads_4 + orig_dims_2) % orig_dims_2
j3 = (i3 - all_pads_6 + orig_dims_3) % orig_dims_3
load_idx = (
orig_dims_3 * orig_dims_2 * orig_dims_1 * j0
+ orig_dims_3 * orig_dims_2 * j1
+ orig_dims_3 * j2
+ j3
)
mask_x = load_idx < X_len
x = tl.load(X + load_idx, mask=mask_x)
tl.store(Y + i, x, mask=mask_y)
# The launch code wrapped to expose it as a custom operator in our namespace
@custom_op("torchtrt_ex::triton_circular_pad", mutates_args=()) # type: ignore[misc]
def triton_circular_pad(x: torch.Tensor, padding: Sequence[int]) -> torch.Tensor:
out_dims = np.ones(len(x.shape), dtype=np.int32)
for i in range(np.size(padding) // 2):
out_dims[len(out_dims) - i - 1] = (
x.shape[len(out_dims) - i - 1] + padding[i * 2] + padding[i * 2 + 1]
)
y = torch.empty(tuple(out_dims.tolist()), device=x.device)
N = len(x.shape)
all_pads = np.zeros((N * 2,), dtype=np.int32)
orig_dims = np.array(x.shape, dtype=np.int32)
out_dims = np.array(x.shape, dtype=np.int32)
for i in range(len(padding) // 2):
out_dims[N - i - 1] += padding[i * 2] + padding[i * 2 + 1]
all_pads[N * 2 - 2 * i - 2] = padding[i * 2]
all_pads[N * 2 - 2 * i - 1] = padding[i * 2 + 1]
blockSize = 256
numBlocks = (int((np.prod(out_dims) + blockSize - 1) // blockSize),)
circ_pad_kernel[numBlocks](
x,
all_pads[0],
all_pads[2],
all_pads[4],
all_pads[6],
orig_dims[0],
orig_dims[1],
orig_dims[2],
orig_dims[3],
y,
out_dims[1],
out_dims[2],
out_dims[3],
int(np.prod(orig_dims)),
int(np.prod(out_dims)),
BLOCK_SIZE=256,
)
return y
以上就是建立 PyTorch 自定義運算子所需的全部步驟。我們現在可以直接將其作為 torch.ops.torchtrt_ex.triton_circular_pad 來呼叫。
測試我們的自定義運算子¶
原生 PyTorch 實現
ex_input = torch.arange(9, dtype=torch.float).reshape(1, 1, 3, 3).to("cuda")
padding = (1, 1, 2, 0)
torch.nn.functional.pad(ex_input, padding, "circular")
tensor([[[[5., 3., 4., 5., 3.],
[8., 6., 7., 8., 6.],
[2., 0., 1., 2., 0.],
[5., 3., 4., 5., 3.],
[8., 6., 7., 8., 6.]]]], device='cuda:0')
我們的自定義實現
torch.ops.torchtrt_ex.triton_circular_pad(ex_input, padding)
tensor([[[[5., 3., 4., 5., 3.],
[8., 6., 7., 8., 6.],
[2., 0., 1., 2., 0.],
[5., 3., 4., 5., 3.],
[8., 6., 7., 8., 6.]]]], device='cuda:0')
我們已經定義了在 PyTorch 中開始使用自定義運算子所需的最少內容，但為了進一步讓 Dynamo 能夠跟蹤此運算子（這是 Torch-TensorRT 支援的前提），我們需要定義該運算子的“偽張量”（Fake Tensor）實現。此函式根據原生 PyTorch 運算子定義了我們的核心對輸入張量的影響。它允許 Dynamo 計算張量屬性（如大小、步長、裝置等），而無需使用真實資料（更多資訊參見此處）。在我們的例子中，我們可以直接使用原生的迴圈填充操作作為我們的 FakeTensor 實現。
@torch.library.register_fake("torchtrt_ex::triton_circular_pad") # type: ignore[misc]
def _(x: torch.Tensor, padding: Sequence[int]) -> torch.Tensor:
return torch.nn.functional.pad(x, padding, "circular")
# Additionally one may want to define an autograd implementation for the backwards pass to round out the custom op implementation but that is beyond the scope of this tutorial (see https://pytorch.com.tw/docs/main/library.html#torch.library.register_autograd for more)
在模型中使用自定義運算子¶
我們現在可以使用自定義運算子建立模型了。這是一個使用原生支援的運算子（卷積）和我們的自定義運算子的小例子。
from typing import Sequence
from torch import nn
class MyModel(nn.Module): # type: ignore[misc]
def __init__(self, padding: Sequence[int]):
super().__init__()
self.padding = padding
self.conv = nn.Conv2d(1, 5, kernel_size=3)
def forward(self, x: torch.Tensor) -> torch.Tensor:
padded_x = torch.ops.torchtrt_ex.triton_circular_pad(x, self.padding)
y = self.conv(padded_x)
return y
my_model = MyModel((1, 1, 2, 0)).to("cuda")
my_model(ex_input)
tensor([[[[-0.2604, -0.4232, -0.3041],
[-3.0833, -3.2461, -3.1270],
[-0.2450, -0.4079, -0.2887]],
[[ 0.2828, -0.0373, 1.0332],
[-2.3143, -2.6344, -1.5638],
[-1.1867, -1.5068, -0.4363]],
[[ 1.7937, 1.3488, 2.1350],
[ 0.7966, 0.3517, 1.1379],
[ 3.5537, 3.1088, 3.8950]],
[[-1.0550, -0.6163, -1.0109],
[ 0.5245, 0.9632, 0.5686],
[ 0.3775, 0.8162, 0.4216]],
[[-0.4311, -0.1649, -1.2091],
[-4.3668, -4.1006, -5.1447],
[-5.0352, -4.7689, -5.8131]]]], device='cuda:0')
如果我們嘗試使用 Torch-TensorRT 編譯此模型，我們可以看到（截至 Torch-TensorRT 2.4.0 版本）建立了多個子圖，分別在 PyTorch 中執行自定義運算子，在 TensorRT 中運行卷積。
import torch_tensorrt as torchtrt
torchtrt.compile(
my_model,
inputs=[ex_input],
dryrun=True, # Check the support of the model without having to build the engines
min_block_size=1,
)
GraphModule(
(_run_on_gpu_0): GraphModule()
(_run_on_acc_1): GraphModule(
(conv): Module()
)
)
++++++++++++++ Dry-Run Results for Graph +++++++++++++++++
The graph consists of 2 Total Operators, of which 1 operators are supported, 50.0% coverage
The following ops are currently unsupported or excluded from conversion, and are listed with their op-count in the graph:
torch.ops.torchtrt_ex.triton_circular_pad.default: 1
The following nodes are currently set to run in Torch:
Node: torch.ops.torchtrt_ex.triton_circular_pad.default, with layer location: __/triton_circular_pad
Note: Some of the above nodes may be supported, but were not included in a TRT graph by the partitioner
Compiled with: CompilationSettings(enabled_precisions={<dtype.f32: 7>}, debug=False, workspace_size=0, min_block_size=1, torch_executed_ops=set(), pass_through_build_failures=False, max_aux_streams=None, version_compatible=False, optimization_level=None, use_python_runtime=False, truncate_double=False, use_fast_partitioner=True, enable_experimental_decompositions=False, device=Device(type=DeviceType.GPU, gpu_id=0), require_full_compilation=False, disable_tf32=False, sparse_weights=False, refit=False, engine_capability=<EngineCapability.STANDARD: 1>, num_avg_timing_iters=1, dla_sram_size=1048576, dla_local_dram_size=1073741824, dla_global_dram_size=536870912, dryrun=True, hardware_compatible=False)
Graph Structure:
Inputs: List[Tensor: (1, 1, 3, 3)@float32]
...
TRT Engine #1 - Submodule name: _run_on_acc_1
Engine Inputs: List[Tensor: (1, 1, 5, 5)@float32]
Number of Operators in Engine: 1
Engine Outputs: Tensor: (1, 5, 3, 3)@float32
...
Outputs: List[Tensor: (1, 5, 3, 3)@float32]
--------- Aggregate Stats ---------
Average Number of Operators per TRT Engine: 1.0
Most Operators in a TRT Engine: 1
********** Recommendations **********
- For minimal graph segmentation, select min_block_size=1 which would generate 1 TRT engine(s)
- The current level of graph segmentation is equivalent to selecting min_block_size=1 which generates 1 TRT engine(s)
我們看到將有兩個子圖，一個透過 PyTorch 執行我們的自定義運算子，一個透過 TensorRT 運行卷積。這種圖中斷將是該模型延遲的重要組成部分。
封裝自定義核心以在 TensorRT 中使用¶
為了解決這種圖中斷，第一步是使我們的核心實現可在 TensorRT 中使用。同樣，這可以在 C++ 或 Python 中完成。有關如何實現 TensorRT 外掛的具體細節，請參閱此處。從高層次上看，與 PyTorch 類似，您需要定義系統來處理運算子的設定、抽象地計算運算子的影響、序列化運算子以及在引擎中呼叫運算子實現的實際機制。
import pickle as pkl
from typing import Any, List, Optional, Self
import cupy as cp # Needed to work around API gaps in PyTorch to build torch.Tensors around preallocated CUDA memory
import numpy as np
import tensorrt as trt
class CircularPaddingPlugin(trt.IPluginV2DynamicExt): # type: ignore[misc]
def __init__(
self, field_collection: Optional[List[trt.PluginFieldCollection]] = None
):
super().__init__()
self.pads = []
self.X_shape: List[int] = []
self.num_outputs = 1
self.plugin_namespace = ""
self.plugin_type = "CircularPaddingPlugin"
self.plugin_version = "1"
if field_collection is not None:
assert field_collection[0].name == "pads"
self.pads = field_collection[0].data
def get_output_datatype(
self, index: int, input_types: List[trt.DataType]
) -> trt.DataType:
return input_types[0]
def get_output_dimensions(
self,
output_index: int,
inputs: List[trt.DimsExprs],
exprBuilder: trt.IExprBuilder,
) -> trt.DimsExprs:
output_dims = trt.DimsExprs(inputs[0])
for i in range(np.size(self.pads) // 2):
output_dims[len(output_dims) - i - 1] = exprBuilder.operation(
trt.DimensionOperation.SUM,
inputs[0][len(output_dims) - i - 1],
exprBuilder.constant(self.pads[i * 2] + self.pads[i * 2 + 1]),
)
return output_dims
def configure_plugin(
self,
inp: List[trt.DynamicPluginTensorDesc],
out: List[trt.DynamicPluginTensorDesc],
) -> None:
X_dims = inp[0].desc.dims
self.X_shape = np.zeros((len(X_dims),))
for i in range(len(X_dims)):
self.X_shape[i] = X_dims[i]
def serialize(self) -> bytes:
return pkl.dumps({"pads": self.pads})
def supports_format_combination(
self, pos: int, in_out: List[trt.PluginTensorDesc], num_inputs: int
) -> bool:
assert num_inputs == 1
assert pos < len(in_out)
desc = in_out[pos]
if desc.format != trt.TensorFormat.LINEAR:
return False
# first input should be float16 or float32
if pos == 0:
return bool(
(desc.type == trt.DataType.FLOAT) or desc.type == (trt.DataType.HALF)
)
# output should have the same type as the input
if pos == 1:
return bool((in_out[0].type == desc.type))
return False
def enqueue(
self,
input_desc: List[trt.PluginTensorDesc],
output_desc: List[trt.PluginTensorDesc],
inputs: List[int],
outputs: List[int],
workspace: int,
stream: int,
) -> None:
# Host code is slightly different as this will be run as part of the TRT execution
in_dtype = torchtrt.dtype.try_from(input_desc[0].type).to(np.dtype)
a_mem = cp.cuda.UnownedMemory(
inputs[0], np.prod(input_desc[0].dims) * cp.dtype(in_dtype).itemsize, self
)
c_mem = cp.cuda.UnownedMemory(
outputs[0],
np.prod(output_desc[0].dims) * cp.dtype(in_dtype).itemsize,
self,
)
a_ptr = cp.cuda.MemoryPointer(a_mem, 0)
c_ptr = cp.cuda.MemoryPointer(c_mem, 0)
a_d = cp.ndarray((np.prod(input_desc[0].dims)), dtype=in_dtype, memptr=a_ptr)
c_d = cp.ndarray((np.prod(output_desc[0].dims)), dtype=in_dtype, memptr=c_ptr)
a_t = torch.as_tensor(a_d, device="cuda")
c_t = torch.as_tensor(c_d, device="cuda")
N = len(self.X_shape)
all_pads = np.zeros((N * 2,), dtype=np.int32)
orig_dims = np.array(self.X_shape, dtype=np.int32)
out_dims = np.array(self.X_shape, dtype=np.int32)
for i in range(np.size(self.pads) // 2):
out_dims[N - i - 1] += self.pads[i * 2] + self.pads[i * 2 + 1]
all_pads[N * 2 - 2 * i - 2] = self.pads[i * 2]
all_pads[N * 2 - 2 * i - 1] = self.pads[i * 2 + 1]
all_pads = all_pads.tolist()
orig_dims = orig_dims.tolist()
out_dims = out_dims.tolist()
blockSize = 256
numBlocks = (int((np.prod(out_dims) + blockSize - 1) // blockSize),)
# Call the same kernel implementation we use in PyTorch
circ_pad_kernel[numBlocks](
a_t,
all_pads[0],
all_pads[2],
all_pads[4],
all_pads[6],
orig_dims[0],
orig_dims[1],
orig_dims[2],
orig_dims[3],
c_t,
out_dims[1],
out_dims[2],
out_dims[3],
int(np.prod(orig_dims)),
int(np.prod(out_dims)),
BLOCK_SIZE=256,
)
def clone(self) -> Self:
cloned_plugin = CircularPaddingPlugin()
cloned_plugin.__dict__.update(self.__dict__)
return cloned_plugin
class CircularPaddingPluginCreator(trt.IPluginCreator): # type: ignore[misc]
def __init__(self):
super().__init__()
self.name = "CircularPaddingPlugin"
self.plugin_namespace = ""
self.plugin_version = "1"
self.field_names = trt.PluginFieldCollection(
[trt.PluginField("pads", np.array([]), trt.PluginFieldType.INT32)]
)
def create_plugin(
self, name: str, field_collection: trt.PluginFieldCollection_
) -> CircularPaddingPlugin:
return CircularPaddingPlugin(field_collection)
def deserialize_plugin(self, name: str, data: bytes) -> CircularPaddingPlugin:
pads_dict = pkl.loads(data)
print(pads_dict)
deserialized = CircularPaddingPlugin()
deserialized.__dict__.update(pads_dict)
print(deserialized.pads)
return deserialized
# Register the plugin creator in the TensorRT Plugin Registry
TRT_PLUGIN_REGISTRY = trt.get_plugin_registry()
TRT_PLUGIN_REGISTRY.register_creator(CircularPaddingPluginCreator(), "") # type: ignore[no-untyped-call]
使用 Torch-TensorRT 插入核心¶
現在有了我們的 TensorRT 外掛，我們可以建立一個轉換器，以便 Torch-TensorRT 知道將我們的外掛插入到自定義迴圈填充運算子的位置。有關編寫轉換器的更多資訊可以在此處找到。
from typing import Dict, Tuple
from torch.fx.node import Argument, Target
from torch_tensorrt.dynamo.conversion import (
ConversionContext,
dynamo_tensorrt_converter,
)
from torch_tensorrt.dynamo.conversion.converter_utils import get_trt_tensor
from torch_tensorrt.fx.converters.converter_utils import set_layer_name
@dynamo_tensorrt_converter(
torch.ops.torchtrt_ex.triton_circular_pad.default
) # type: ignore
# Recall the schema defined above:
# torch.ops.torchtrt_ex.triton_circular_pad.default(Tensor x, IntList padding) -> Tensor
def circular_padding_converter(
ctx: ConversionContext,
target: Target,
args: Tuple[Argument, ...],
kwargs: Dict[str, Argument],
name: str,
):
# How to retrieve a plugin if it is defined elsewhere (e.g. linked library)
plugin_registry = trt.get_plugin_registry()
plugin_creator = plugin_registry.get_plugin_creator(
type="CircularPaddingPlugin", version="1", plugin_namespace=""
)
assert plugin_creator, f"Unable to find CircularPaddingPlugin creator"
# Pass configurations to the plugin implementation
field_configs = trt.PluginFieldCollection(
[
trt.PluginField(
"pads",
np.array(
args[1], dtype=np.int32
), # Arg 1 of `torch.ops.torchtrt_ex.triton_circular_pad` is the int list containing the padding settings. Note: the dtype matters as you are eventually passing this as a c-like buffer
trt.PluginFieldType.INT32,
),
]
)
plugin = plugin_creator.create_plugin(name=name, field_collection=field_configs)
assert plugin, "Unable to create CircularPaddingPlugin"
input_tensor = args[
0
] # Arg 0 `torch.ops.torchtrt_ex.triton_circular_pad` is the input tensor
if not isinstance(input_tensor, trt.ITensor):
# Freeze input tensor if not TensorRT Tensor already
input_tensor = get_trt_tensor(ctx, input_tensor, f"{name}_input")
layer = ctx.net.add_plugin_v2(
[input_tensor], plugin
) # Add the plugin to the network being constructed
layer.name = f"circular_padding_plugin-{name}"
return layer.get_output(0)
最後，我們現在可以完全編譯我們的模型了
trt_model = torchtrt.compile(
my_model,
inputs=[ex_input],
min_block_size=1,
)
GraphModule(
(_run_on_acc_0): TorchTensorRTModule()
)
+++++++++++++++ Dry-Run Results for Graph ++++++++++++++++
The graph consists of 2 Total Operators, of which 2 operators are supported, 100.0% coverage
Compiled with: CompilationSettings(enabled_precisions={<dtype.f32: 7>}, debug=True, workspace_size=0, min_block_size=1, torch_executed_ops=set(), pass_through_build_failures=False, max_aux_streams=None, version_compatible=False, optimization_level=None, use_python_runtime=False, truncate_double=False, use_fast_partitioner=True, enable_experimental_decompositions=False, device=Device(type=DeviceType.GPU, gpu_id=0), require_full_compilation=False, disable_tf32=False, sparse_weights=False, refit=False, engine_capability=<EngineCapability.STANDARD: 1>, num_avg_timing_iters=1, dla_sram_size=1048576, dla_local_dram_size=1073741824, dla_global_dram_size=536870912, dryrun=False, hardware_compatible=False)
Graph Structure:
Inputs: List[Tensor: (1, 1, 3, 3)@float32]
...
TRT Engine #1 - Submodule name: _run_on_acc_0
Engine Inputs: List[Tensor: (1, 1, 3, 3)@float32]
Number of Operators in Engine: 2
Engine Outputs: Tensor: (1, 5, 3, 3)@float32
...
Outputs: List[Tensor: (1, 5, 3, 3)@float32]
---------- Aggregate Stats -------------
Average Number of Operators per TRT Engine: 2.0
Most Operators in a TRT Engine: 2
********** Recommendations **********
- For minimal graph segmentation, select min_block_size=2 which would generate 1 TRT engine(s)
- The current level of graph segmentation is equivalent to selecting min_block_size=2 which generates 1 TRT engine(s)
如您所見，現在只為 TensorRT 引擎建立了一個子圖，其中包含了我們的自定義核心和原生卷積運算子。
print(trt_model(ex_input))
tensor([[[[-0.2604, -0.4232, -0.3041],
[-3.0833, -3.2461, -3.1270],
[-0.2450, -0.4079, -0.2887]],
[[ 0.2828, -0.0373, 1.0332],
[-2.3143, -2.6344, -1.5638],
[-1.1867, -1.5068, -0.4363]],
[[ 1.7937, 1.3488, 2.1350],
[ 0.7966, 0.3517, 1.1379],
[ 3.5537, 3.1088, 3.8950]],
[[-1.0550, -0.6163, -1.0109],
[ 0.5245, 0.9632, 0.5686],
[ 0.3775, 0.8162, 0.4216]],
[[-0.4311, -0.1649, -1.2091],
[-4.3668, -4.1006, -5.1447],
[-5.0352, -4.7689, -5.8131]]]], device='cuda:0')
我們可以驗證我們的實現是否在 TensorRT 和 PyTorch 中都能正確執行
print(my_model(ex_input) - trt_model(ex_input))
tensor([[[[0., 0., 0.],
[0., 0., 0.],
[0., 0., 0.]],
[[0., 0., 0.],
[0., 0., 0.],
[0., 0., 0.]],
[[0., 0., 0.],
[0., 0., 0.],
[0., 0., 0.]],
[[0., 0., 0.],
[0., 0., 0.],
[0., 0., 0.]],
[[0., 0., 0.],
[0., 0., 0.],
[0., 0., 0.]]]], device='cuda:0', grad_fn=<SubBackward0>)
指令碼總執行時間： ( 0 分鐘 0.000 秒)
