音訊資料增強

作者: Moto Hira

torchaudio 提供了多種方式來增強音訊資料。

在本教程中，我們將探討應用效果、濾波器、RIR (室內脈衝響應) 和編解碼器的方法。

最後，我們將從純淨語音合成帶有電話噪音的語音。

import torch
import torchaudio
import torchaudio.functional as F

print(torch.__version__)
print(torchaudio.__version__)

import matplotlib.pyplot as plt

2.7.0
2.7.0

準備工作

首先，我們匯入模組並下載本教程中使用的音訊資源。

from IPython.display import Audio

from torchaudio.utils import download_asset

SAMPLE_WAV = download_asset("tutorial-assets/steam-train-whistle-daniel_simon.wav")
SAMPLE_RIR = download_asset("tutorial-assets/Lab41-SRI-VOiCES-rm1-impulse-mc01-stu-clo-8000hz.wav")
SAMPLE_SPEECH = download_asset("tutorial-assets/Lab41-SRI-VOiCES-src-sp0307-ch127535-sg0042-8000hz.wav")
SAMPLE_NOISE = download_asset("tutorial-assets/Lab41-SRI-VOiCES-rm1-babb-mc01-stu-clo-8000hz.wav")

  0%|          | 0.00/427k [00:00<?, ?B/s]
100%|##########| 427k/427k [00:00<00:00, 56.9MB/s]

  0%|          | 0.00/31.3k [00:00<?, ?B/s]
100%|##########| 31.3k/31.3k [00:00<00:00, 34.5MB/s]

  0%|          | 0.00/78.2k [00:00<?, ?B/s]
100%|##########| 78.2k/78.2k [00:00<00:00, 61.6MB/s]

應用效果和濾波

torchaudio.io.AudioEffector 允許直接將濾波器和編解碼器應用於 Tensor 物件，方式類似於 ffmpeg 命令。

AudioEffector 用法 <./effector_tutorial.html> 解釋瞭如何使用此類，有關詳細資訊，請參閱該教程。

# Load the data
waveform1, sample_rate = torchaudio.load(SAMPLE_WAV, channels_first=False)

# Define effects
effect = ",".join(
    [
        "lowpass=frequency=300:poles=1",  # apply single-pole lowpass filter
        "atempo=0.8",  # reduce the speed
        "aecho=in_gain=0.8:out_gain=0.9:delays=200:decays=0.3|delays=400:decays=0.3"
        # Applying echo gives some dramatic feeling
    ],
)


# Apply effects
def apply_effect(waveform, sample_rate, effect):
    effector = torchaudio.io.AudioEffector(effect=effect)
    return effector.apply(waveform, sample_rate)


waveform2 = apply_effect(waveform1, sample_rate, effect)

print(waveform1.shape, sample_rate)
print(waveform2.shape, sample_rate)

torch.Size([109368, 2]) 44100
torch.Size([144642, 2]) 44100

請注意，應用效果後，幀數和通道數與原始音訊不同。我們來聽聽音訊。

def plot_waveform(waveform, sample_rate, title="Waveform", xlim=None):
    waveform = waveform.numpy()

    num_channels, num_frames = waveform.shape
    time_axis = torch.arange(0, num_frames) / sample_rate

    figure, axes = plt.subplots(num_channels, 1)
    if num_channels == 1:
        axes = [axes]
    for c in range(num_channels):
        axes[c].plot(time_axis, waveform[c], linewidth=1)
        axes[c].grid(True)
        if num_channels > 1:
            axes[c].set_ylabel(f"Channel {c+1}")
        if xlim:
            axes[c].set_xlim(xlim)
    figure.suptitle(title)

def plot_specgram(waveform, sample_rate, title="Spectrogram", xlim=None):
    waveform = waveform.numpy()

    num_channels, _ = waveform.shape

    figure, axes = plt.subplots(num_channels, 1)
    if num_channels == 1:
        axes = [axes]
    for c in range(num_channels):
        axes[c].specgram(waveform[c], Fs=sample_rate)
        if num_channels > 1:
            axes[c].set_ylabel(f"Channel {c+1}")
        if xlim:
            axes[c].set_xlim(xlim)
    figure.suptitle(title)

原始音訊

plot_waveform(waveform1.T, sample_rate, title="Original", xlim=(-0.1, 3.2))
plot_specgram(waveform1.T, sample_rate, title="Original", xlim=(0, 3.04))
Audio(waveform1.T, rate=sample_rate)

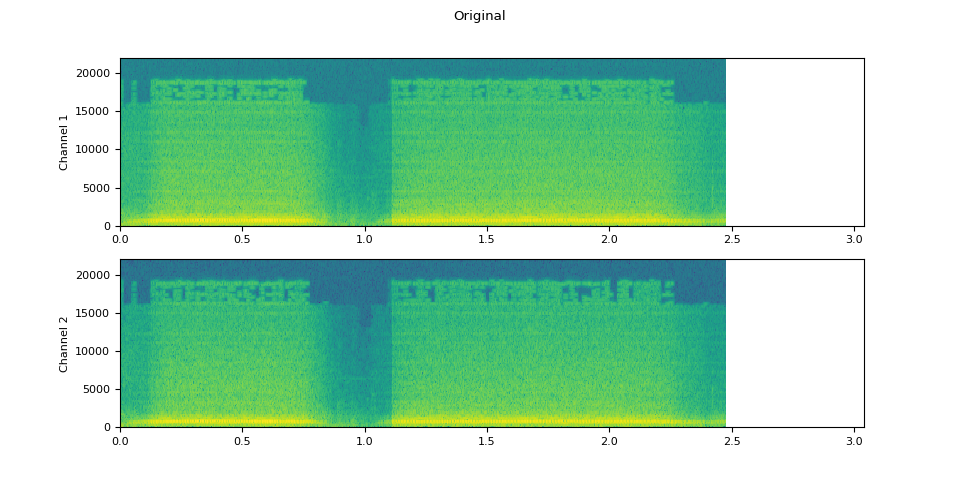

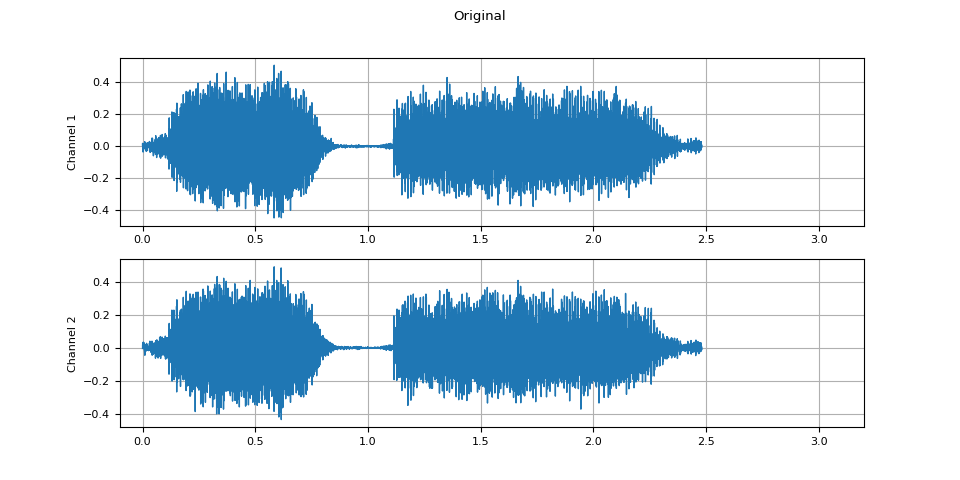

  • Original
  • Original


應用效果後

plot_waveform(waveform2.T, sample_rate, title="Effects Applied", xlim=(-0.1, 3.2))
plot_specgram(waveform2.T, sample_rate, title="Effects Applied", xlim=(0, 3.04))
Audio(waveform2.T, rate=sample_rate)

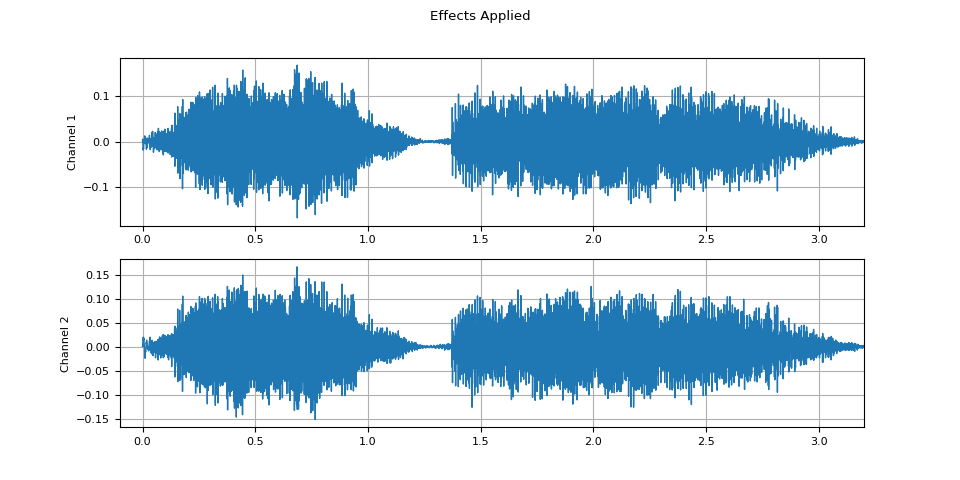

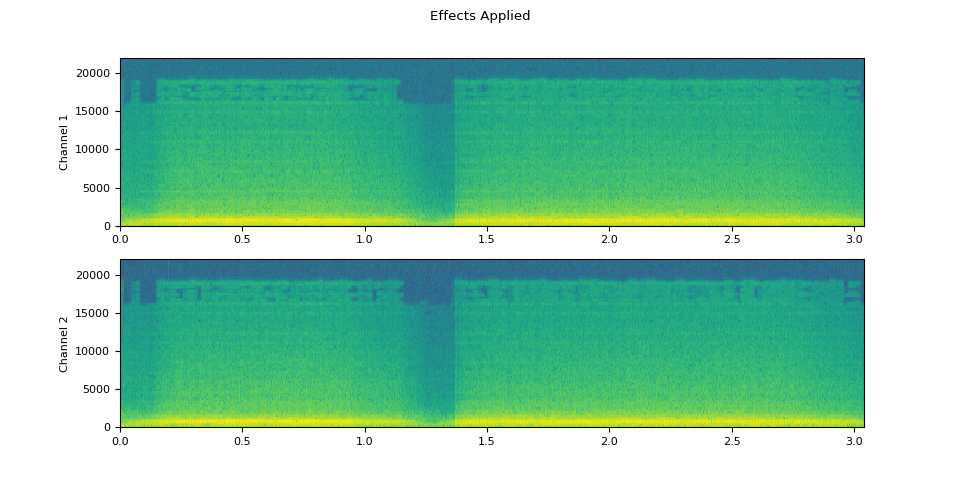

  • Effects Applied
  • Effects Applied


模擬房間混響

卷積混響是一種技術，用於使純淨音訊聽起來像是在不同環境中產生的。

例如，使用室內脈衝響應 (RIR)，我們可以讓純淨語音聽起來像是在會議室中說出的。

對於此過程，我們需要 RIR 資料。以下資料來自 VOiCES 資料集，但您也可以自己錄製 — 只需開啟麥克風並拍手即可。

rir_raw, sample_rate = torchaudio.load(SAMPLE_RIR)
plot_waveform(rir_raw, sample_rate, title="Room Impulse Response (raw)")
plot_specgram(rir_raw, sample_rate, title="Room Impulse Response (raw)")
Audio(rir_raw, rate=sample_rate)

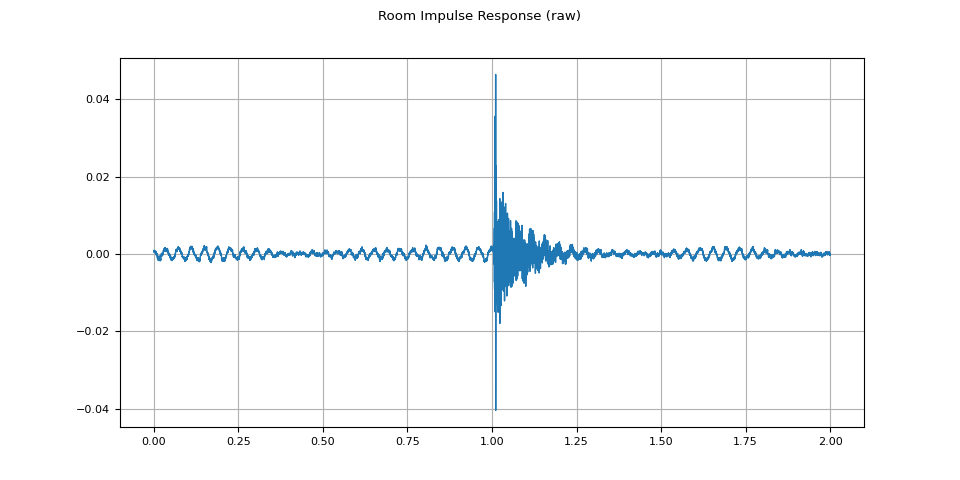

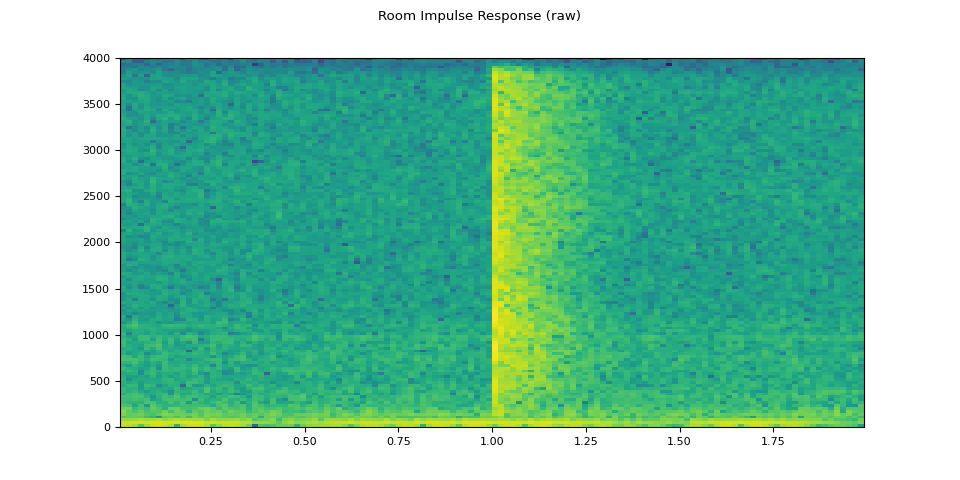

  • Room Impulse Response (raw)
  • Room Impulse Response (raw)


首先，我們需要清理 RIR。我們提取主脈衝並按其功率進行歸一化。

rir = rir_raw[:, int(sample_rate * 1.01) : int(sample_rate * 1.3)]
rir = rir / torch.linalg.vector_norm(rir, ord=2)

plot_waveform(rir, sample_rate, title="Room Impulse Response")

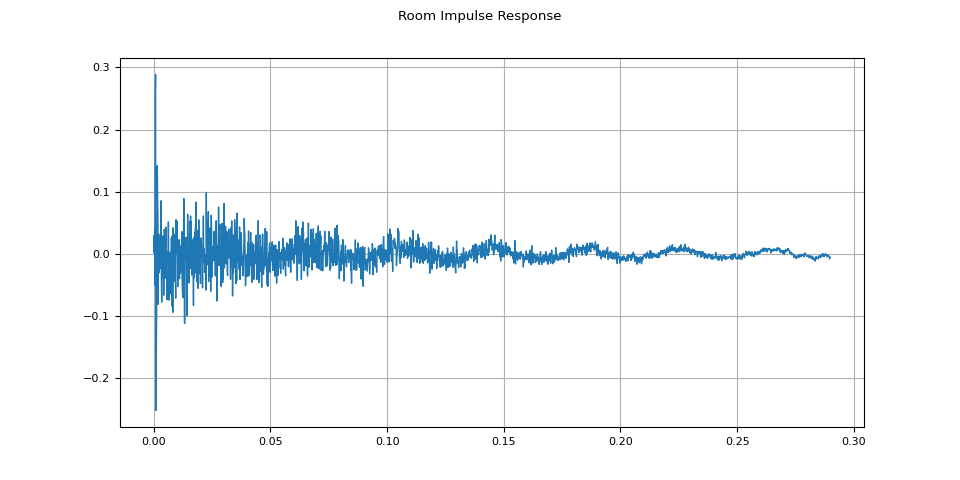

Room Impulse Response

然後，使用 torchaudio.functional.fftconvolve()，我們將語音訊號與 RIR 進行卷積。

speech, _ = torchaudio.load(SAMPLE_SPEECH)
augmented = F.fftconvolve(speech, rir)

原始音訊

plot_waveform(speech, sample_rate, title="Original")
plot_specgram(speech, sample_rate, title="Original")
Audio(speech, rate=sample_rate)
  • Original
  • Original


應用 RIR 後

plot_waveform(augmented, sample_rate, title="RIR Applied")
plot_specgram(augmented, sample_rate, title="RIR Applied")
Audio(augmented, rate=sample_rate)

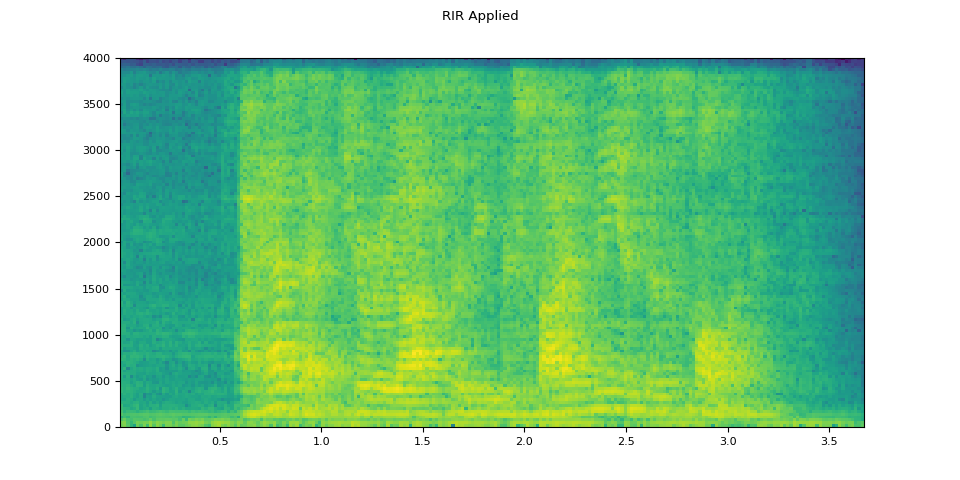

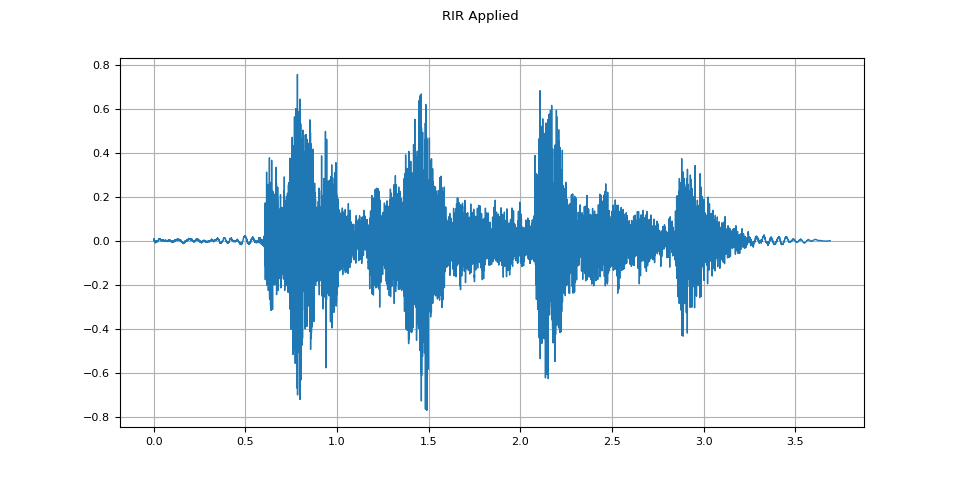

  • RIR Applied
  • RIR Applied


新增背景噪音

為了給音訊資料引入背景噪音，我們可以根據所需的信噪比 (SNR) [wikipedia]，將一個噪音 Tensor 新增到表示音訊資料的 Tensor 中，信噪比決定了輸出中音訊資料的強度相對於噪音的強度。

$$ \mathrm{SNR} = \frac{P_{signal}}{P_{noise}} $$

$$ \mathrm{SNR_{dB}} = 10 \log _{{10}} \mathrm {SNR} $$

要根據信噪比向音訊資料新增噪音，我們使用 torchaudio.functional.add_noise()。

speech, _ = torchaudio.load(SAMPLE_SPEECH)
noise, _ = torchaudio.load(SAMPLE_NOISE)
noise = noise[:, : speech.shape[1]]

snr_dbs = torch.tensor([20, 10, 3])
noisy_speeches = F.add_noise(speech, noise, snr_dbs)

背景噪音

plot_waveform(noise, sample_rate, title="Background noise")
plot_specgram(noise, sample_rate, title="Background noise")
Audio(noise, rate=sample_rate)

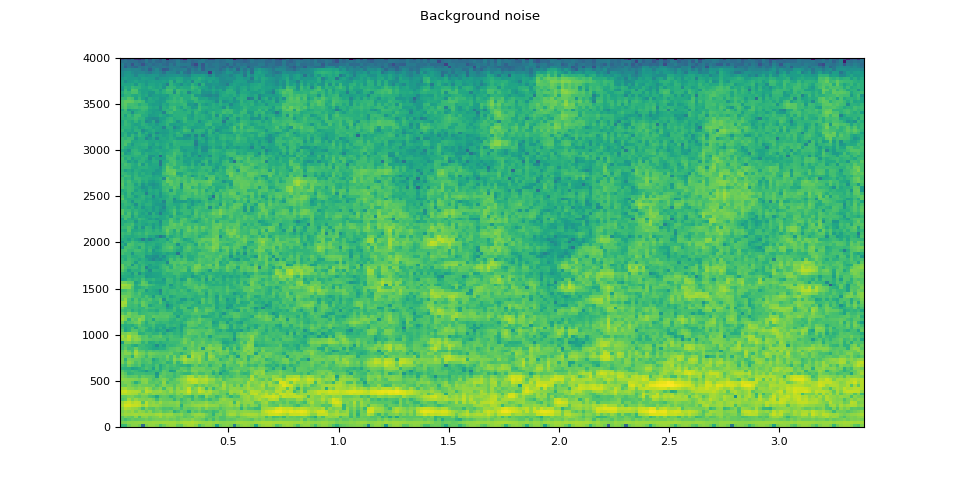

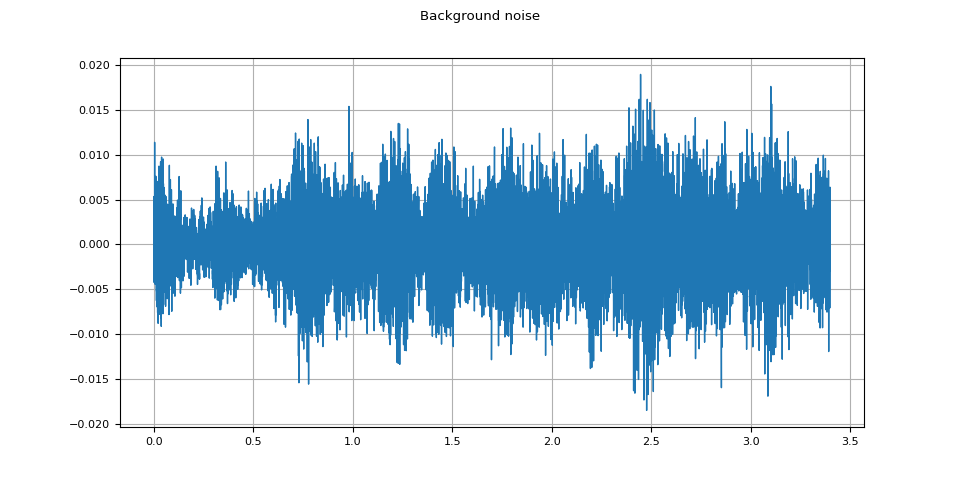

  • Background noise
  • Background noise


信噪比 20 dB

snr_db, noisy_speech = snr_dbs[0], noisy_speeches[0:1]
plot_waveform(noisy_speech, sample_rate, title=f"SNR: {snr_db} [dB]")
plot_specgram(noisy_speech, sample_rate, title=f"SNR: {snr_db} [dB]")
Audio(noisy_speech, rate=sample_rate)

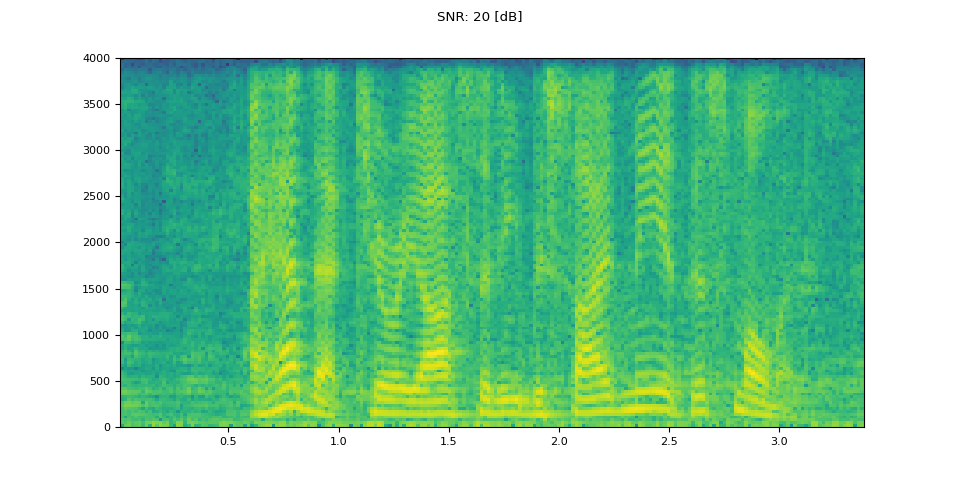

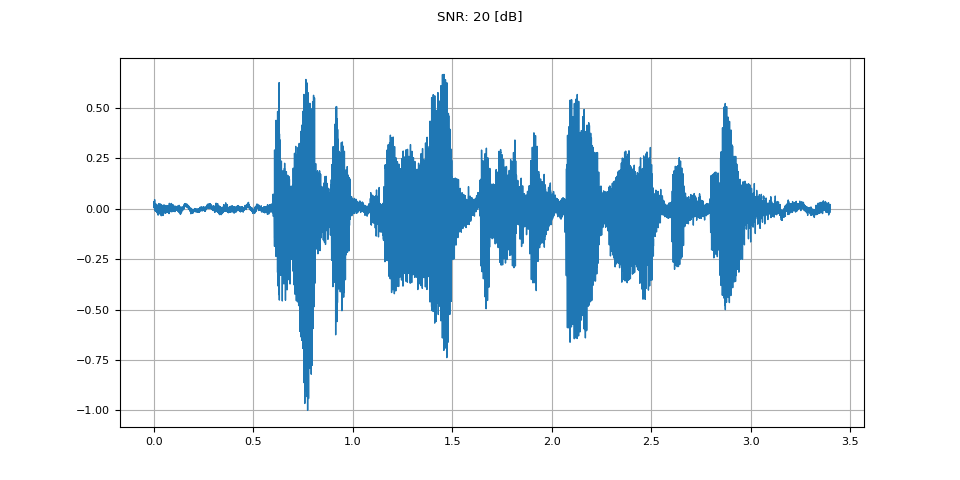

  • SNR: 20 [dB]
  • SNR: 20 [dB]


信噪比 10 dB

snr_db, noisy_speech = snr_dbs[1], noisy_speeches[1:2]
plot_waveform(noisy_speech, sample_rate, title=f"SNR: {snr_db} [dB]")
plot_specgram(noisy_speech, sample_rate, title=f"SNR: {snr_db} [dB]")
Audio(noisy_speech, rate=sample_rate)

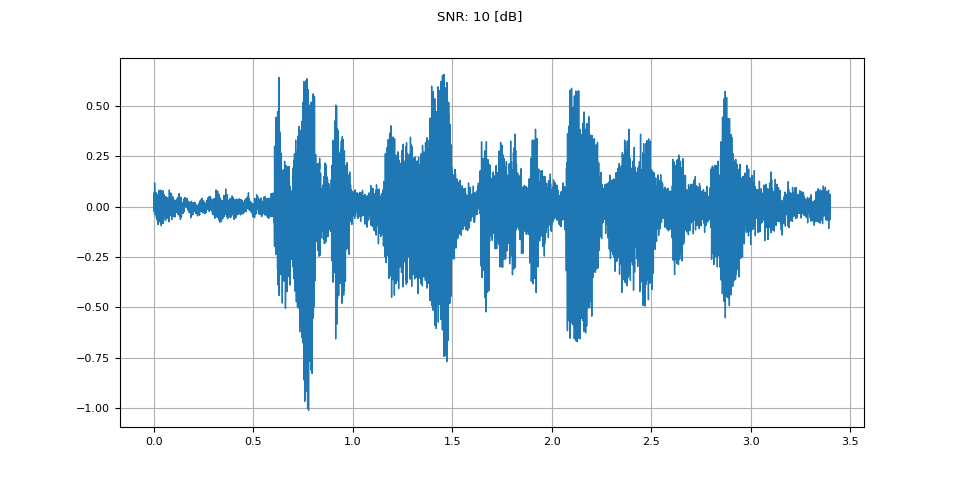

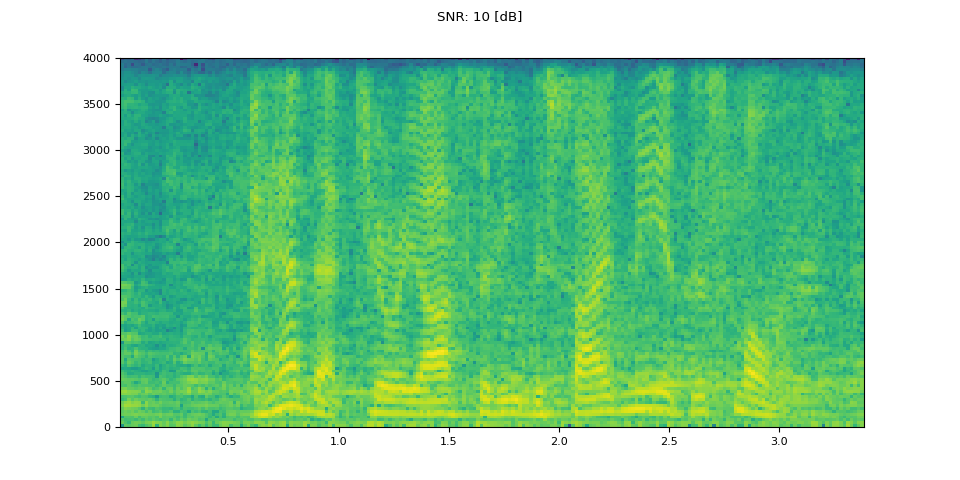

  • SNR: 10 [dB]
  • SNR: 10 [dB]


信噪比 3 dB

snr_db, noisy_speech = snr_dbs[2], noisy_speeches[2:3]
plot_waveform(noisy_speech, sample_rate, title=f"SNR: {snr_db} [dB]")
plot_specgram(noisy_speech, sample_rate, title=f"SNR: {snr_db} [dB]")
Audio(noisy_speech, rate=sample_rate)

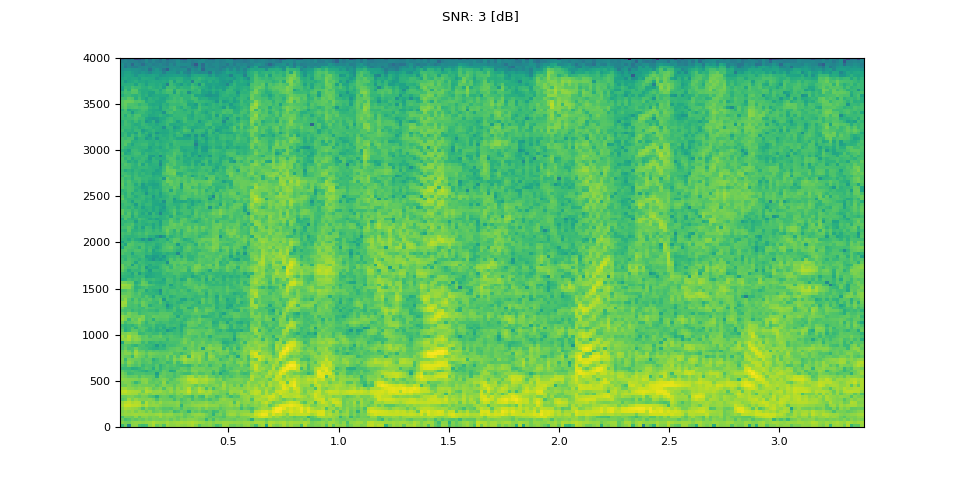

  • SNR: 3 [dB]
  • SNR: 3 [dB]


將編解碼器應用於 Tensor 物件

torchaudio.io.AudioEffector 也可以將編解碼器應用於 Tensor 物件。

waveform, sample_rate = torchaudio.load(SAMPLE_SPEECH, channels_first=False)


def apply_codec(waveform, sample_rate, format, encoder=None):
    encoder = torchaudio.io.AudioEffector(format=format, encoder=encoder)
    return encoder.apply(waveform, sample_rate)

原始音訊

plot_waveform(waveform.T, sample_rate, title="Original")
plot_specgram(waveform.T, sample_rate, title="Original")
Audio(waveform.T, rate=sample_rate)

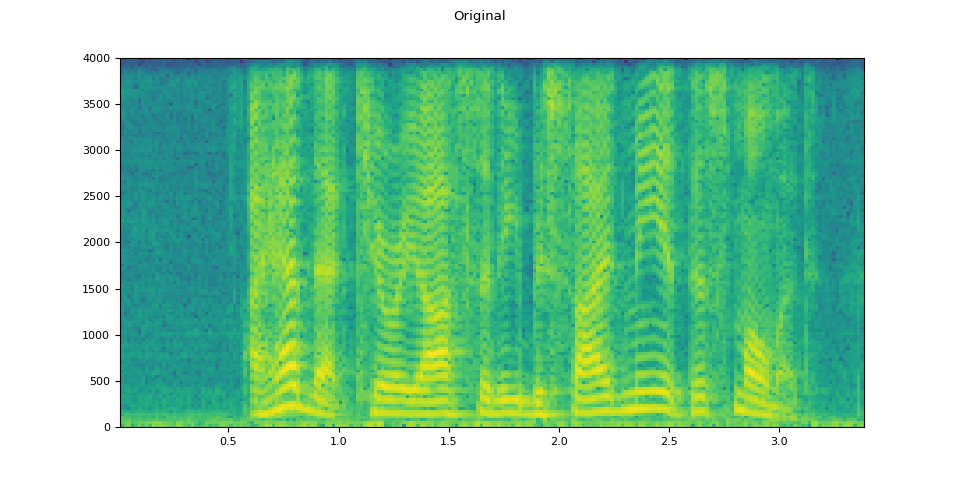

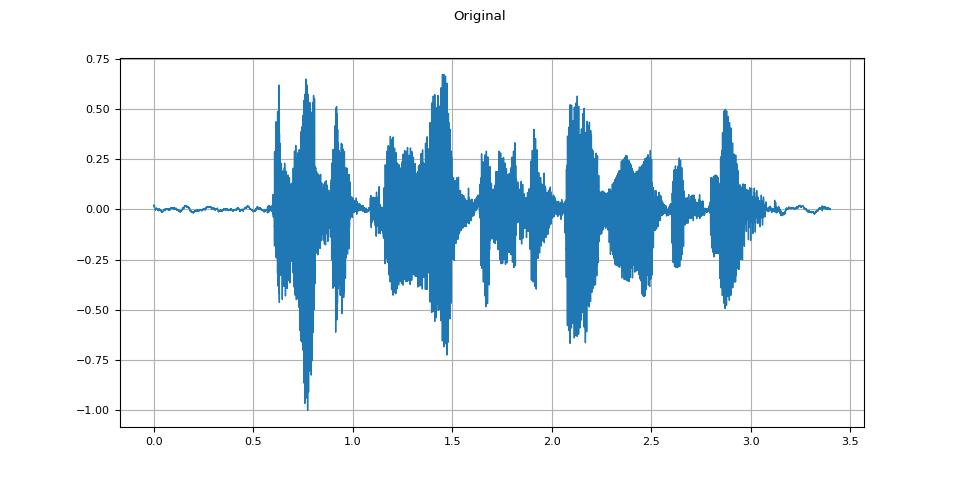

  • Original
  • Original


8 位 mu-law

mulaw = apply_codec(waveform, sample_rate, "wav", encoder="pcm_mulaw")
plot_waveform(mulaw.T, sample_rate, title="8 bit mu-law")
plot_specgram(mulaw.T, sample_rate, title="8 bit mu-law")
Audio(mulaw.T, rate=sample_rate)
  • 8 bit mu-law
  • 8 bit mu-law


G.722

g722 = apply_codec(waveform, sample_rate, "g722")
plot_waveform(g722.T, sample_rate, title="G.722")
plot_specgram(g722.T, sample_rate, title="G.722")
Audio(g722.T, rate=sample_rate)

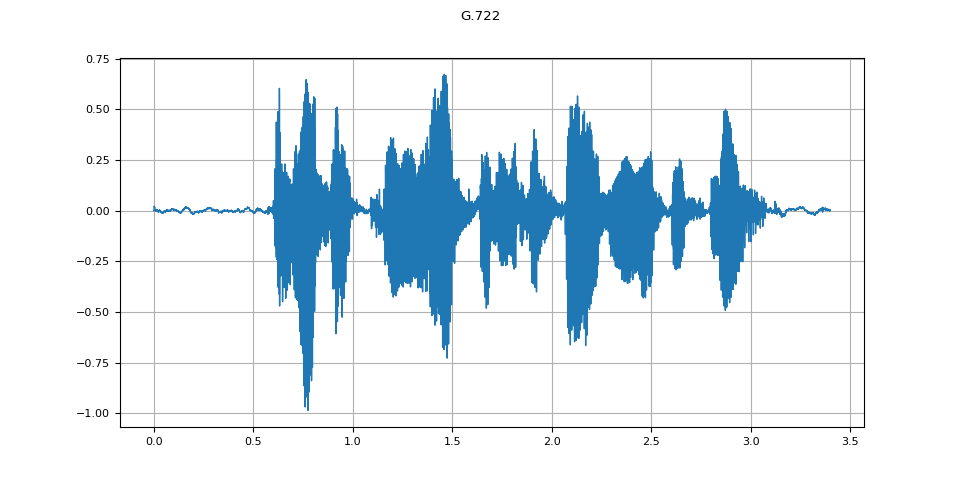

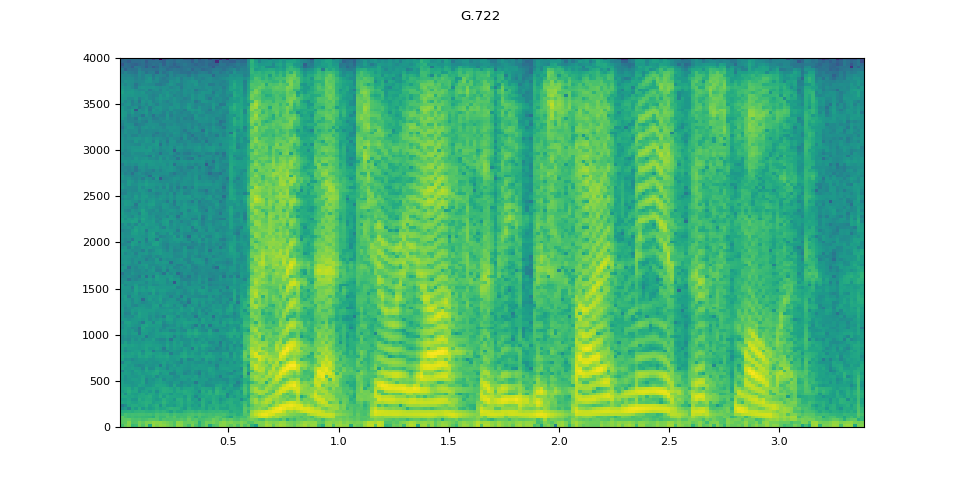

  • G.722
  • G.722


Vorbis

vorbis = apply_codec(waveform, sample_rate, "ogg", encoder="vorbis")
plot_waveform(vorbis.T, sample_rate, title="Vorbis")
plot_specgram(vorbis.T, sample_rate, title="Vorbis")
Audio(vorbis.T, rate=sample_rate)

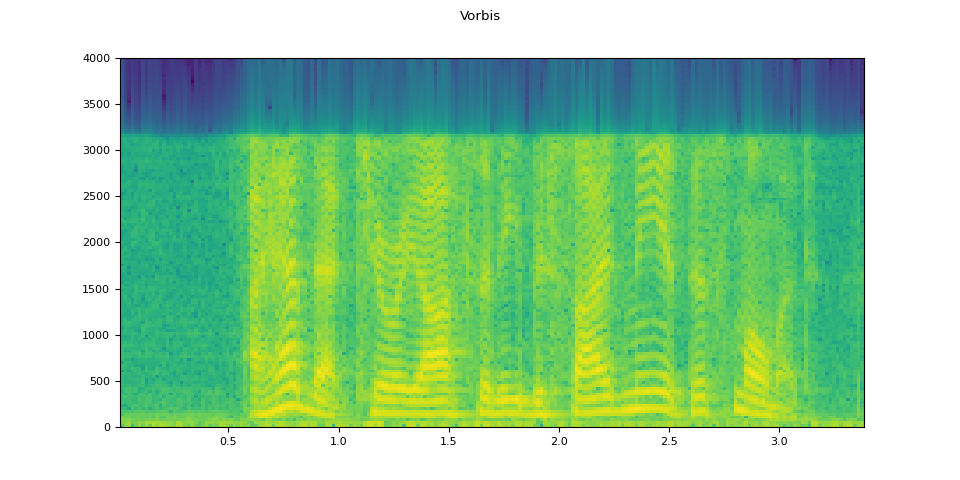

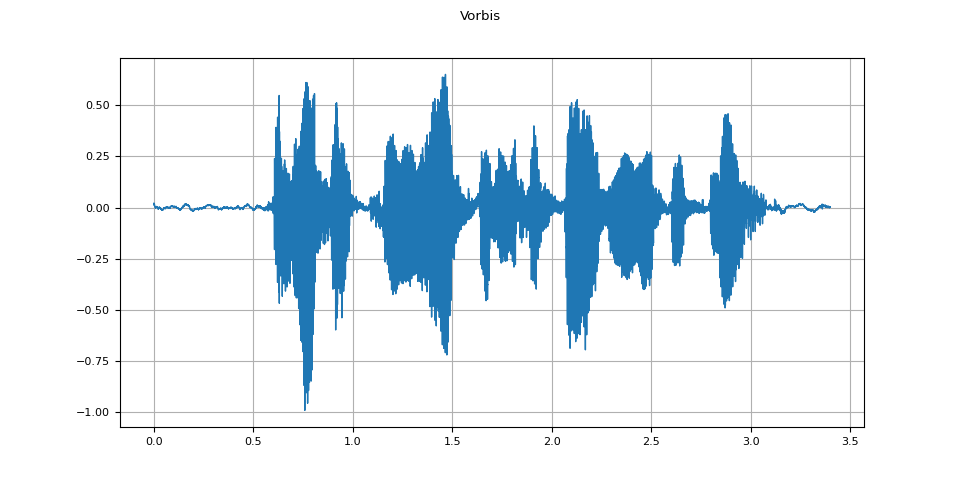

  • Vorbis
  • Vorbis


模擬電話錄音

結合前面的技術，我們可以模擬一個人在有回聲的房間裡透過電話講話，背景中有人聲的音訊。

sample_rate = 16000
original_speech, sample_rate = torchaudio.load(SAMPLE_SPEECH)

plot_specgram(original_speech, sample_rate, title="Original")

# Apply RIR
rir_applied = F.fftconvolve(speech, rir)

plot_specgram(rir_applied, sample_rate, title="RIR Applied")

# Add background noise
# Because the noise is recorded in the actual environment, we consider that
# the noise contains the acoustic feature of the environment. Therefore, we add
# the noise after RIR application.
noise, _ = torchaudio.load(SAMPLE_NOISE)
noise = noise[:, : rir_applied.shape[1]]

snr_db = torch.tensor([8])
bg_added = F.add_noise(rir_applied, noise, snr_db)

plot_specgram(bg_added, sample_rate, title="BG noise added")

# Apply filtering and change sample rate
effect = ",".join(
    [
        "lowpass=frequency=4000:poles=1",
        "compand=attacks=0.02:decays=0.05:points=-60/-60|-30/-10|-20/-8|-5/-8|-2/-8:gain=-8:volume=-7:delay=0.05",
    ]
)

filtered = apply_effect(bg_added.T, sample_rate, effect)
sample_rate2 = 8000

plot_specgram(filtered.T, sample_rate2, title="Filtered")

# Apply telephony codec
codec_applied = apply_codec(filtered, sample_rate2, "g722")
plot_specgram(codec_applied.T, sample_rate2, title="G.722 Codec Applied")
  • Original
  • RIR Applied

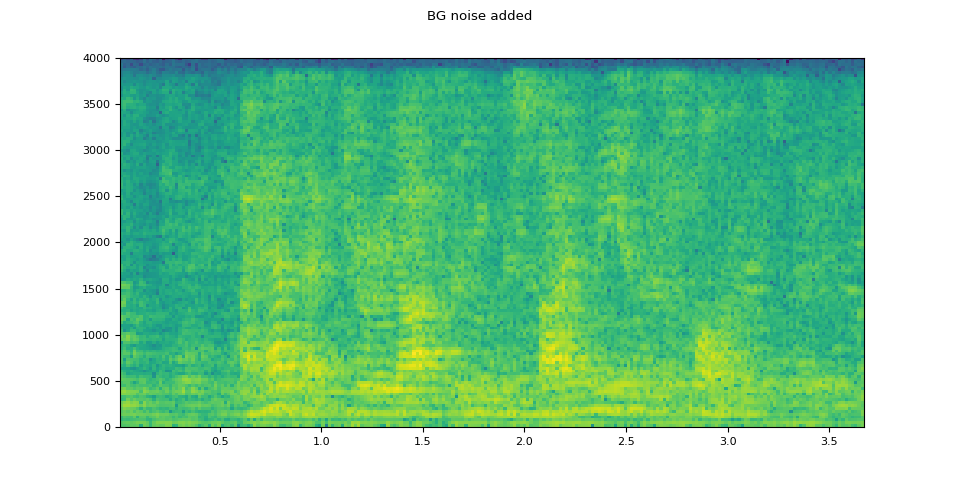

  • BG noise added
  • Filtered

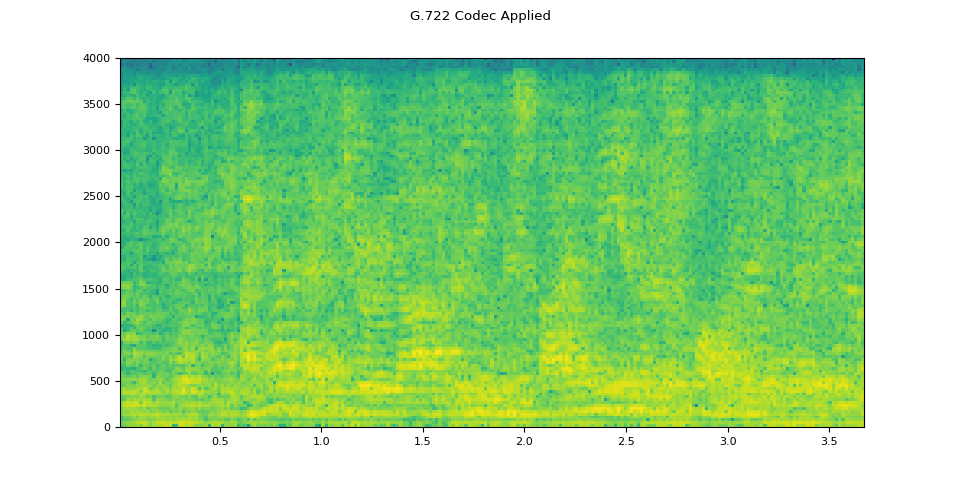

  • G.722 Codec Applied

原始語音

Audio(original_speech, rate=sample_rate)


應用 RIR 後

Audio(rir_applied, rate=sample_rate)


新增背景噪音後

Audio(bg_added, rate=sample_rate)


濾波後

Audio(filtered.T, rate=sample_rate2)


應用編解碼器後

Audio(codec_applied.T, rate=sample_rate2)


指令碼總執行時間： ( 0 分 14.991 秒)
